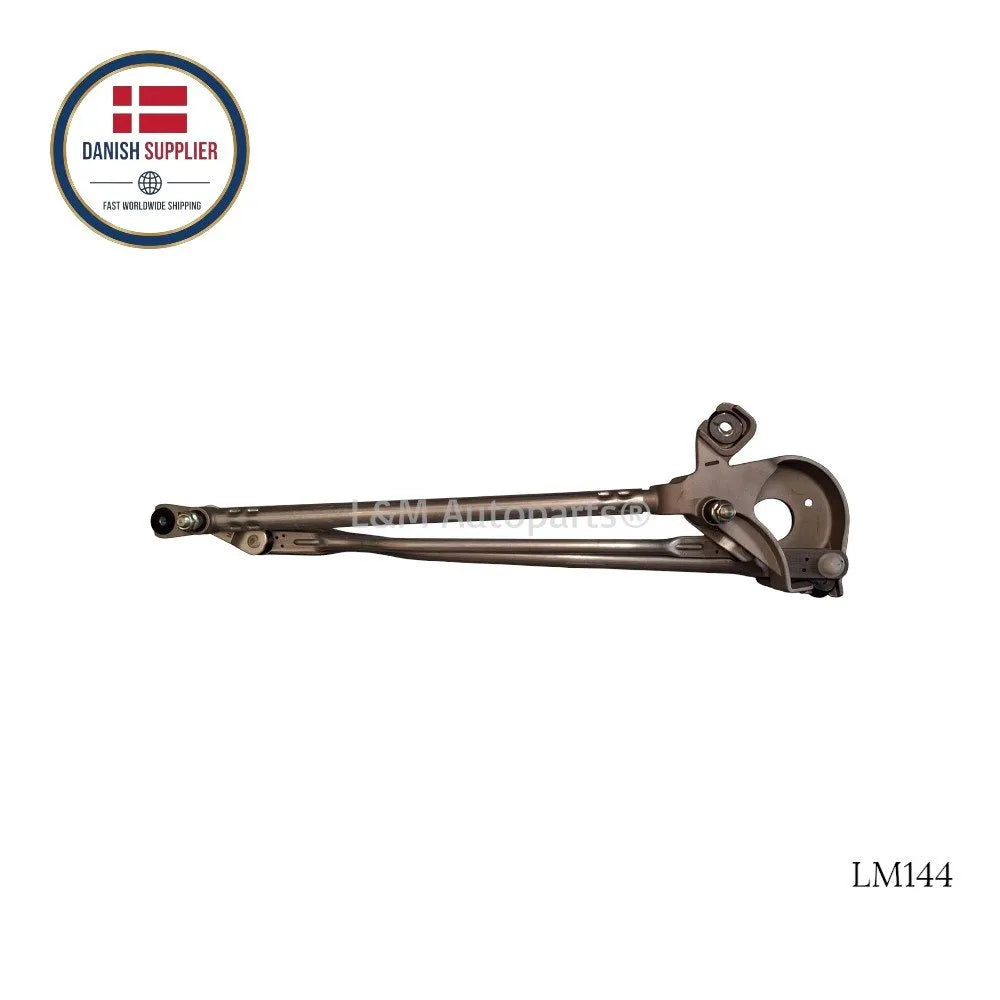

Model S - Front Windshield Wiper Linkage

Tesla Model S Front Windshield Wiper Linkage for Left hand drive vehicles

Wiper motor not included, Sold separately.

Important Installation Note:

Before installing the wiper linkage, always ensure the wiper motor is in its parked (rest) position. You can do this by activating a full wiper cycle using the windshield washer function and allowing the motor to stop completely. Once the motor is in the correct position, install the linkage and adjust the wiper arms accordingly to prevent over-travel beyond the A-pillar.

Note

The rubber washers that are located between the wiper spindles and the cowl screen panel can stick to the panel as it is removed, then fall off the panel without being noticed. Collect the washers as the panel is removed and reinstall them on the wiper spindles

Failure to follow this procedure may result in incorrect operation or damage.

A professional installer is required, otherwise the warranty will be voided.

Position:
Front

Fitment:
Model: Model S
Year: 2012 - 2021

Part numbers:
OEM: 6005946-00-G, 6005946-00-A, 6005946-00
SKU: LM144
